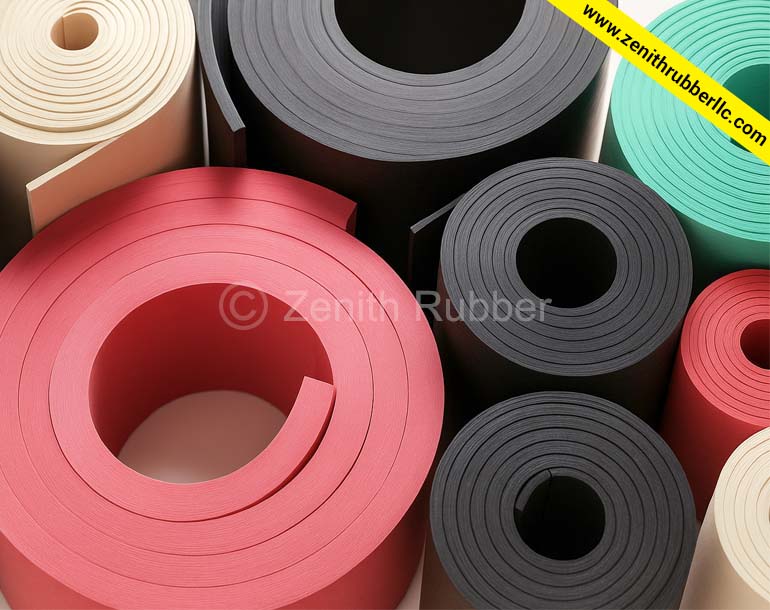

Industrial Rubber Sheets

Industrial Rubber Sheets Overview

All Zenith's rubber sheeting products are REACH, RoHS, PAH, and CE certified.

Zenith Rubber manufactures a comprehensive range of rubber sheeting. From commercial compounds to highly technical sheets to match stringent customer specifications. Zenith Rubber's highly innovative team also offers the development of custom compounds for our customers.

We are one of the best known rubber product manufacturing company in the world with wide range of customized rubber products at the competitive prices.

Storage of the Products

Storage conditions should be according to DIN7716 standards.
The products must be stored in a cool, dry place with temperatures ranging between 10°C & 20°C, sheltered from the sun and free from ozone, etc. Avoid contact with hydrocarbons, solvents, acids, and alkalis.

Standard Thickness Tolerances
Nominale thickness (mm) Elastomer sheeting Design matting and isolating matting Wear-resistant sheeting
0,5 +/- 0,2
1,0 +/- 0,2
2,0 +/- 0,3
2,5 +/- 0,3
3,0 +/- 0,3 +/- 0,4
4,0 +/- 0,3 +/- 0,4
5,0 +/- 0,4 +/- 0,5
6,0 +/- 0,4 +/- 0,5 +/- 0,5
8,0 +/- 0,7 +/- 0,8 +/- 0,8
10,0 +/- 0,7 +/- 0,8 +/- 0,8
12,0 +/- 0,8 +/- 1,0
15,0 +/- 0,8 +/- 1,0
20,0 +/- 1,0 +/- 1,4
25,0 +/- 1,25 +/- 1,75
30,0 +/- 1,5 +/- 2,1
35,0 +/- 1,75 +/- 2,45
40,0 +/- 2,0 +/- 2,8
45,0 +/- 2,25 +/- 3,15
50,0 +/- 2,5 +/- 3,5
up to 6 mm DIN 7715 P2 DIN 7715 P3 DIN 7715 P3
over 6 mm ISO 3302 ST2 ISO 3302 ST3 ISO 3302 ST3
Width tolerance: +/- 2% ISO 3302 SW1
Length tolerance: +/- 2%
The following special thickness tolerances apply for all light grades (e.g. food sheeting):
0.5mm - 5.0mm DIN 7715 P2
6.0mm - 10.0mm ISO 3302 ST2

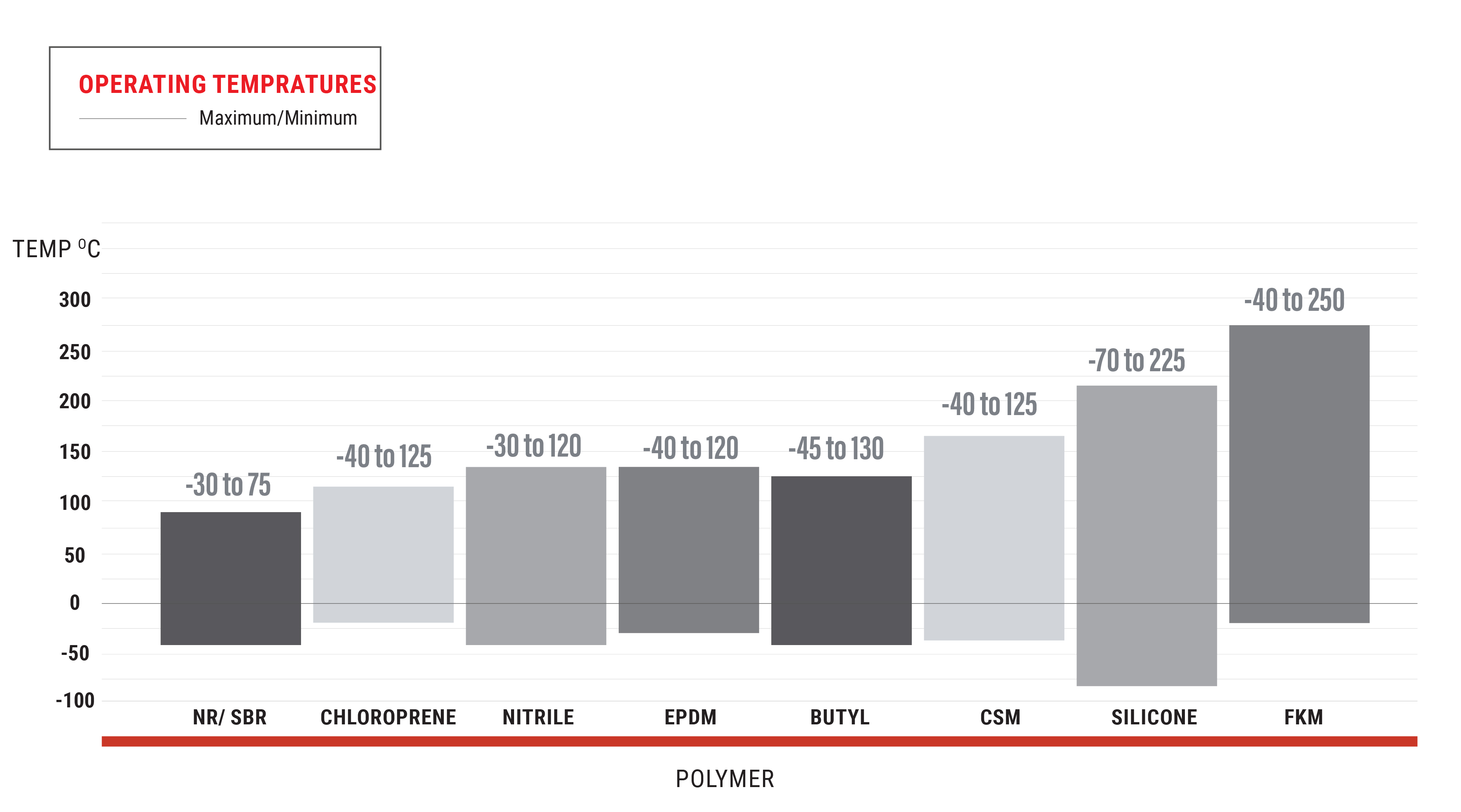

Polymer selection criteria
Application Natural Rubber / SBR Chloroprene Nitrile EPDM Butyl CSM Silicone FKM
Petrol Poor Poor Good Poor Poor Poor Poor Excellent
Lubricating Oils Poor Fair Good Poor Poor Fair Good Excellent
Acids Fair Fair Good Excellent Excellent Excellent Fair Good
Alkali Fair Fair Fair Good Excellent Excellent Fair Fair
Hydraulic Phosphates Poor Poor Poor Good Good Fair Good Poor
Fluid Silicates Poor Good Good Fair Fair Good Poor Good
Abrasion Resistance Excellent Good Good Good Good Good Fair Good
Tear Strength Good Good Good Fair Good Fair Poor Fair
Impact Resistance Excellent Good Fair Good Good Good Fair Fair
Resilience Excellent Good Good Good Fair Good Poor Fair
Impermeable to Gases Fair Good Good Good Excellent Excellent Poor Excellent
Compression Set Good Good Good Fair Fair Fair Good Good
Please Note

The information, figures, calculations, test values, and data contained in this page - which we use to best advise our customers - correspond to current engineering standards. This data is the result of many years of tests and trials. As individual operating conditions influence the application of each sheet, the information on this site can only be used as a rough guideline. In the individual case, it is the sole responsibility of the customer to evaluate requirements, in particular, if specified properties are sufficient for use. Our qualified engineers are available to discuss difficult problems with you.
