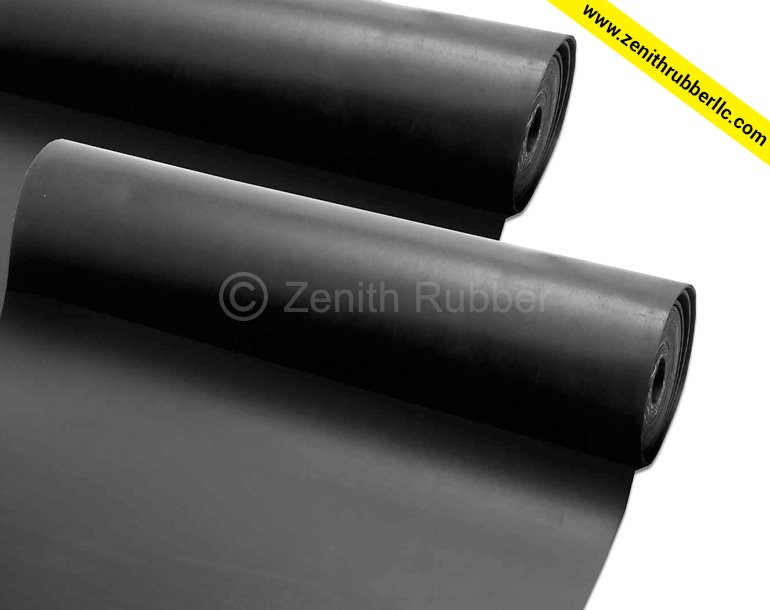

Butyl Rubber Sheeting

Butyl Rubber Sheeting

Butyl rubber is a copolymer of isobutylene and a small percentage of isoprene and has a very low permeability to air and other gases. It has excellent resistance to ozone, oxidation and sunlight, with an excellent temperature range of -45° C to + 130° C. Butyl has a very low resilience, which makes it ideal for vibration damping and shock absorption applications but offer a moderate resistance to abrasion and compression set. With careful compounding, Butyl compound can be made to acquire really good tensile strength. It is resistant to most inorganic products and highly resistant to mineral acids, alkaline and aqueous acids. We do not recommend its use in application where resistance to oils and Hydrocarbons is required. We can offer halogenated Butyl Rubber Sheets for specified applications.

Butyl Rubber Sheeting
Code Colour Specific Gravity Hardness (±5) Tensile Strength Elongation Finish Type TDS
Gm/cm3 SHORE A Kg/cm2(min) % (min)
IR 65120 Various Colours 1.20 ± 0.05 65 90 350 Smooth/Fabric -
Standard Length 10 Mtr 33 Ft 11 Yard
Standard Width 1.2/1.4/1.5/2 Mtr 4/4.6/4.92/6.56 Ft 1.33/1.53/1.64/2.18 Yard
Note
  1. Sheets can be supplied with 1 or 2 ply insertion/s in Cotton, Nylon, Polyester, Glass Fibre etc.
  2. One side or both side smooth or fabric finish can be supplied.
  3. Specifications are subject to change without notice.
