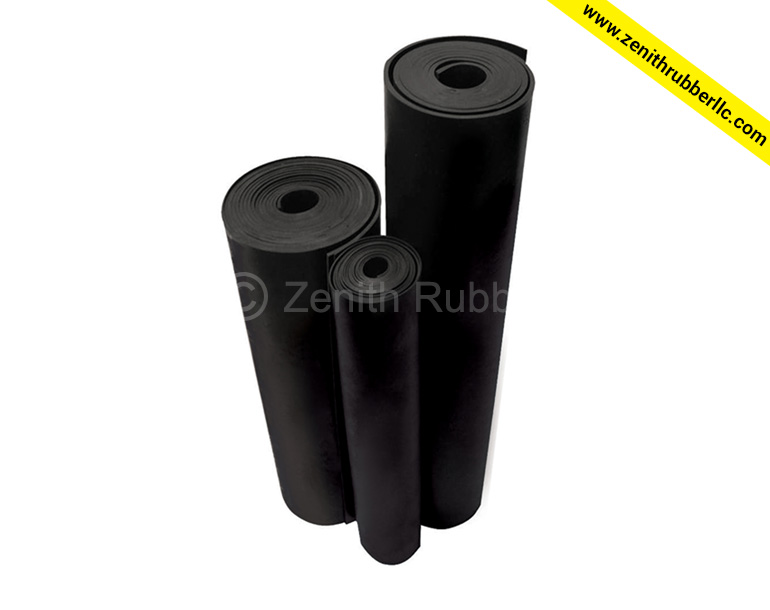

Neoprene Rubber Sheeting

Neoprene Rubber Sheeting

Neoprene rubber, Also known as CR or Chloroprene, is a synthetic rubber. It has an excellent mechanical and good abrasion properties even without reinforcing filters and has a reasonable resilience in grades over 60° shore A. It displays good resistance to heat, ozone, oil and weathering and also gives good adhesion to metal. The recommended operating temperature range is between -40°C to +125°C. It has good resistance to inorganic hydrocarbons. Chloroprene rubber sheet is widely used in automotive applications such as gaskets, seals, Industrial Hoses & Belts, marine application, Fire retardant application, Electrical panel lining, Chemicals and oil resistance etc.

Neoprene Rubber Sheets
Code Colour Specific Gravity Hardness (±5) Tensile Strength Elongation Finish Type TDS
Gm/cm3 SHORE A Kg/cm2(min) % (min)
LCNE 70145 Black 1.50 ± 0.05 70 35 200 Smooth/Fabric -
ECNE 70145 Black 1.45 ± 0.05 70 45 250 Smooth/Fabric -
GPNE 70135 Black 1.35 ± 0.05 70 300 400 Smooth/matt -
MNE 65135 Black 1.35 ± 0.05 65 90 350 Smooth/Fabric -
SPNE 65135 Black 1.35 ± 0.05 65 125 350 Smooth/Fabric -
Neoprene Rubber Sheets 2A
SNE 65135 Black 1.35 ± 0.05 65 100 350 Smooth/Fabric -
PNE 65130 Black 1.30 ± 0.05 65 150 350 Smooth/Fabric -
EBNE 65135 Black 1.35 ± 0.05 65 165 400 Smooth/Fabric -
Neoprene Bonded Sheet / Pulley Lagging Black 1.15 ± 0.05 65 180 450 Smooth/Fabric -
FRAS/ Fire Resistance Sheet Black/Grey 1.45 ± 0.05 65 100 300 Smooth/Fabric -
Standard Length 10 Mtr 33 Ft 11 Yard
Standard Width 1.2/1.4/1.5/2 Mtr 4/4.6/4.92/6.56 Ft 1.33/1.53/1.64/2.18 Yard
Note
  1. Sheets can be supplied with 1 or 2 ply insertion/s in Cotton, Nylon, Polyester, Glass Fibre etc.
  2. One side or both side smooth or fabric finish can be supplied.
  3. Specifications are subject to change without notice.
